Eastwood Versa-Cut 4'X4' CNC Plasma Table With CNC Cut 40A Plasma Cutter Machine with Cutting Torch | All-in-One Professional Dual Voltage Metal Precision Cutting and Sheet Fabrication Equipment Set

The Eastwood Versa-Cut 4' X 4' CNC PLASMA TABLE is the perfect way to get the features of a professional CNC Plasma Table at a hobbyist price. A large 49” x 43” cut area means you can handle material right from the steel mill. The CNC Cut Controller operates fully independent of a PC and enables you to dimension and cut fifty pre-loaded shapes. Also any CAD file post-processed in Autodesk Fusion 360 can be loaded via USB Drive and modified as needed by the CNC Cut Controller. Versa-Cut 40 Specifications Power Voltage: 120V±10% VAC, 50/60 Hz, 1 Phase - 240V±10% VAC, 50/60 Hz, 1 Phase Max Output No Load Voltage: 339V DC Rated Input Current: 120V: 19.7 Amps - 240V: 27.4 Amps Output Voltage: 120V: 86V to 92V - 240V: 86V to 96V Output Current Range: 120V: 15 to 30 Amps - 240V: 15 to 40 Amps Duty Cycle (%) 120V: 60% @ 16 Amps, 100% @ 15 Amps Duty Cycle (%) 240V: 60% @ 40 Amps, 100% @ 31 Amps Air Requirements: 5 - 7 CFM @ 60 psi Max Material Thickness: 3/8"* Weight: 24.47 lbs. Dimensions: 14.06” x 8.46” x 14.69” *CNC plasma cutting material exceeding 1/4” requires slow travel speeds and increased pierce time that will wear consumables rapidly. See manual for further guidance. Plasma Table Specifications Power Requirements: 120±10% VAC, 50/60 Hz, 5A Plate Capacity: 48" x 48" x 0.25" thick Weight Capacity (Includes workpiece and full Waterbed): 450 lbs. CNC Torch Travel X-Axis: 49.2" CNC Torch Travel Y-Axis: 43.3" CNC Torch Travel Z-Axis: 2.1" Assembled Waterbed Dimensions X-Axis: 52.5" Assembled Waterbed Dimensions Y-Axis: 52.8" Assembled Waterbed Dimensions Z-Axis: 2.75" Overall Assembled Dimensions (W x D x H): 77" x 71" x 50" (55.1" w/casters) Overall Assembled Weight: 330 lbs. Movement Accuracy: ±0.2mm Cutting Accuracy: ±0.5mm

• ALL-IN-ONE HI-END TECHNOLOGY PLASMA CUTTING MACHINE SET: Redefine your metal crafting experience with the Eastwood Versa Cut 4X4 CNC Plasma Table and Plasma Cutting Machine Torch Set. Crafted for those who demand perfection and a user-friendly metal fabrication experience. This all-in-one powerhouse brings a new level of control and versatility to your workshop or home garage. A fusion of precision, efficiency, and cutting-edge technology in one bundle.
• USER-FRIENDLY CNC CONTROLLER WITH INTUITIVE LCD DISPLAY INTERFACE: Our dedicated controller simplifies your metal fabrication operation, eliminating the need for external laptop computers. Preloaded with standard shapes and design patterns, This metal plasma cutter tool also accepts custom CNC files through the built-in USB slot offering an intuitive and user-friendly interface for beginners and metal art hobbyist.

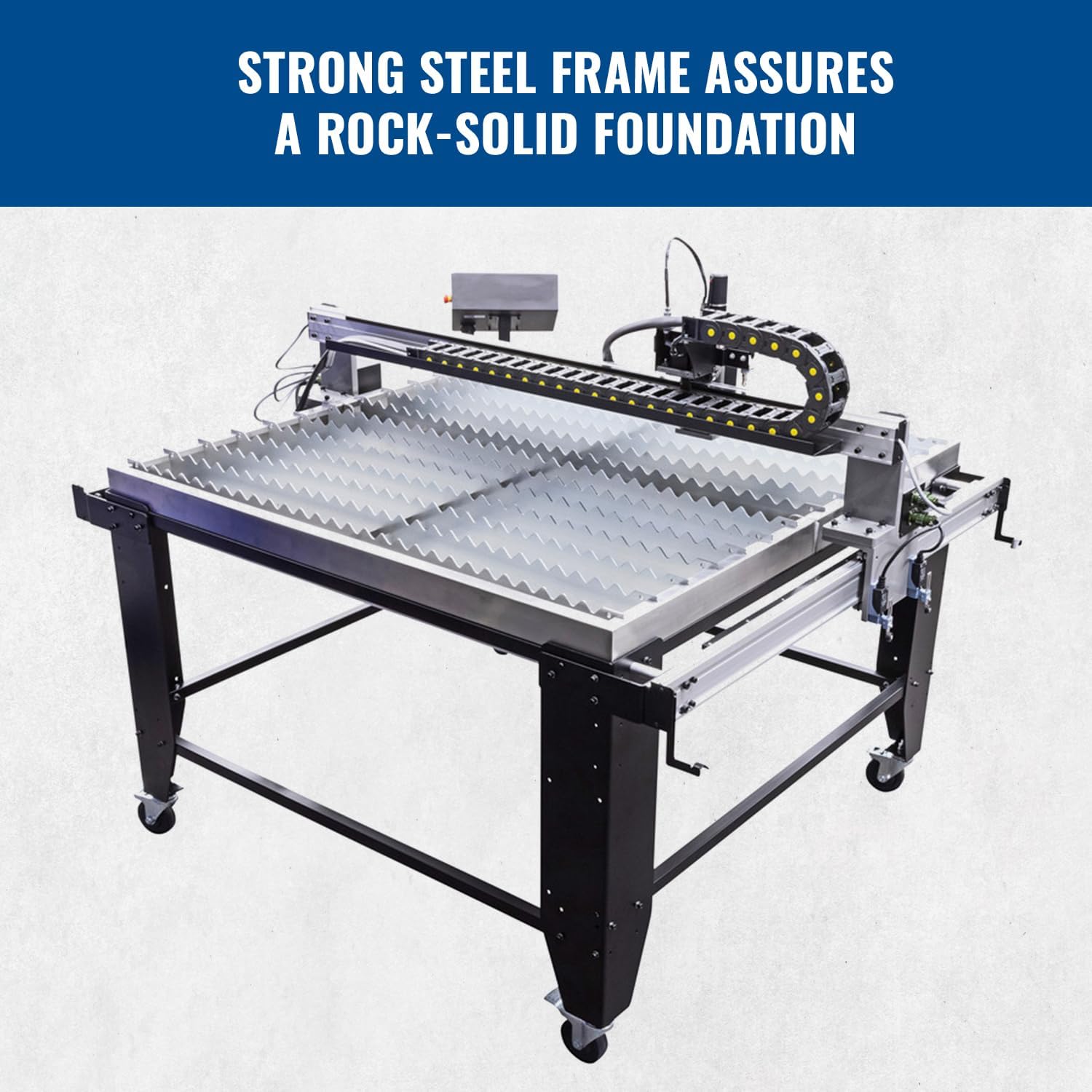

• SEAMLESS METAL CUTTING PRECISION: Experience unparalleled smoothness in metal cutting with the Eastwood Versa Cut 4X4 CNC Plasma Table. Robust stepper motors ensure long life and accurate cut movements, setting the stage for flawless craftsmanship. With a generous and adjustable height torch travel of 49.2" on the X-Axis and 43.3" on the Y-Axis, every intricate detail is brought to life with precision, making this set a benchmark for seamless and accurate metal fabrication.
• EASTWOOD QUALITY: Eastwood offers solutions which combines our 4,000+ unique products with the know-how to “Do The Job Right”. With an In-house product design, development and testing and a strong track record of high-quality, innovative products. Used and trusted by top builders to beginners and also provides a Lifetime Tech Support.
• SATISFACTION GUARANTEED: We stand behind our products with confidence. Our commitment to excellence ensures that your product is covered against defects. If you have any questions, please feel free to contact us, and our support team will provide answers within 24 hours.
